BM5 III 5.5" 2200nit Camera Control Monitor - Portkeys

$499.00

Progress

1. A bigger screen: from 5.2'' to 5.5''
2. A whole new peak algorithm
3. Freeze frame

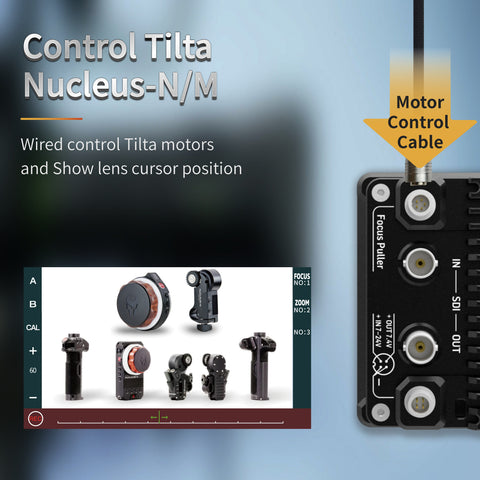

4. Wired control Tilta motors and cursor display


2200Nit New Peaking Image Overlay Image Capture
Control Tilta Motors And Cursor Display Wired Camera Control / Wireless Camera Control Color Calibration Before Shipment Milled Aluminum Body


Basic Parameters

Material: Aluminum alloy+ Touch screen +Toughened glass
Picture Size: 5.5"
Resolution: 1920x1080
Color: 16.7M
HDMI/SDI: 1080p60
Max Power Consumption: 16W
Max Brightness: 2200nits
Viewing Angle: 178°H/178°V
Color Depth: 8bit
Contrast: 1000:1
Weight: 351g
Functions: 3D LUT, Waveform, Peaking, Histogram, Guides, Zebra, Check Field, Grids, Audio Meters, Tint, Touch Capability, Backlight, Adjustable Fan, Zooming, Image Flip, OSD Flip, Cross Hair, HLG, BMD SDI TALLY, Camera Control, False Color, Anamorphic, 3D LUT SDI Output......

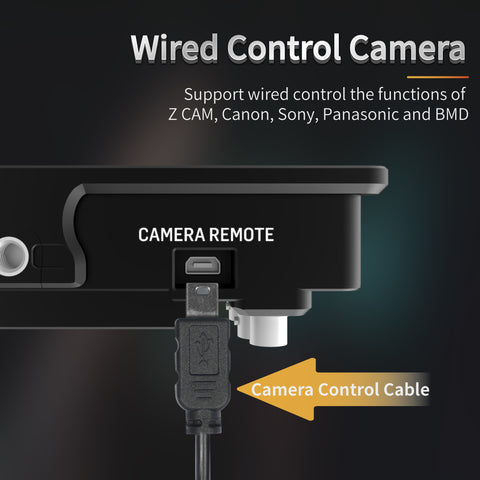

Camera Control Interface: Focus Puller/Camera Remote


New Peaking Algorithm Old Peaking Algorithm



Supported Camera Models

Sony:
A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02 (MULTI control line)
FS5, FS7, FX6, FX9 (LANC control line)
A7S III [TYPE-C(USB-C) control line)]

Canon:
5D MARK III, 5D MARK II, 6D, 6D MARK II, 80D (MINI USB control line)
1DX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV (MICRO USB control line)
R5, R6, C70, EOS R [TYPE-C(USB-C) control line)]
C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200B, C100, C100 MARK 2 (LANC control line)

bm5iii

Tilta:
NUCLEUS-N, NUCLEUS-M (Tilta NUCLEUS-N/M control line)

Panasonic:
GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1

Z CAM:
E2, E2 S6, E2 F6 (LANC control line)

REC key

RED

BlackMagic:
BMPCC4K, BMPCC6K, URSA MINI 4K, URSA MINI 4.6K, URSA MINI PRO 4.6K G2, URSA BROADCAST, CINERA CAMERA 2.7K, CINERA CAMERA 4K, MICRO STUDIO CAMERA 4K (LANC control line)


Image Capture Image Overlay


Focus puller control: Tilta NUCLEUS-N/M, To be continued more models...
Signal input: 3G/HD/SD-SDI、HDMI、USB
Signal output: 3G/HD/SD-SDI
Battery model: SONY NP-F970/960/F750/F550
Power input interface: 4pin Aviation Connector
Delivery date: Ship within 30 days after purchased.
What is included in box:


BM5 III Monitor 1
Power Cord(Aviation Connector-D-TAP) 1
Power Cord (Aviation Connector-DC) 1
Control Cable 1
Warm Prompt Card 1
Plastic box 1
U-disk(instruction, 3D LUT file, and firmware included) 1
warranty card 1


This item is noncancelable and nonreturnable.
